1. Introduction: The Cornerstone of Your Steel Frame Kit Home

For the discerning Australian owner-builder embarking on the construction of a steel frame kit home, the selection of the appropriate foundation system is arguably one of the most critical decisions. It is the literal cornerstone upon which your entire structure, its integrity, and its longevity will rest. This advanced guide plunges deep into the two predominant slab-on-ground foundation types prevalent in Australia: the waffle pod slab and the conventional raft slab. Designed for owner-builders with a solid understanding of construction principles, this guide transcends basic explanations to provide granular detail, engineering insights, regulatory compliance, and practical considerations essential for making an informed, cost-effective, and structurally sound decision for your TRUECORE® steel-framed domicile.

Steel frame kit homes, renowned for their strength, durability, and resistance to pests and fire, demand a foundation that can adequately support their unique characteristics, including lighter dead loads compared to traditional timber framing but often larger spans. Whether you're building a multi-generational residence, a rural retreat, or a contemporary urban dwelling, understanding the nuances of waffle pod and raft slabs will empower you to collaborate effectively with engineers, certifiers, and contractors, ensuring your project adheres to the highest Australian building standards and achieves optimal performance. This guide will navigate the complexities from soil classification to rebar schedules, offering a roadmap to a resilient foundation.

2. Understanding the Basics: Foundation Systems in Australia

In Australia, slab-on-ground construction dominates residential building, offering efficiency, thermal mass benefits, and a robust platform. Primarily, we refer to two types: the conventional raft slab and the waffle pod slab. While both serve the same fundamental purpose – to transfer building loads to the underlying soil – their methodologies, material requirements, and performance characteristics differ significantly.

2.1. Soil Classification: The Foundation of Your Foundation

Before any design work can commence, a comprehensive geotechnical investigation is paramount. Australian Standard AS 2870, 'Residential Slabs and Footings,' is the definitive guide for classifying sites based on soil reactivity. Soil reactivity refers to the soil's potential to shrink and swell with changes in moisture content, which can exert significant uplift or settlement pressures on a foundation. The CSIRO's unified soil classification system is typically employed.

NCC Reference: The National Construction Code (NCC) 2022, Volume Two, Part 3.2.2 'Footings and Slabs' mandates compliance with AS 2870 for the design and construction of footings and slabs for houses and similar structures. This includes requirements for site classification.

Soil classifications range from 'A' (non-reactive) to 'E' (extreme reactivity) and 'P' (problem sites). 'P' sites often require specialised engineering solutions beyond AS 2870, potentially involving piled foundations or deep beams. For steel frame kit homes, typical sites will fall within 'A' to 'E' classifications. The reactivity profoundly influences the required slab thickness, reinforcement, and beam depths.

2.2. Conventional Raft Slabs: The Traditional Approach

A conventional raft slab, also known as a stiffened raft slab or monolithic slab, consists of a concrete slab poured directly onto prepared ground, with integral perimeter and internal beams. These beams extend down into the soil, creating a stiff 'raft' that distributes the building's load over a larger area of soil, mitigating differential settlement. The design is explicitly aimed at resisting moments induced by soil movement.

• Components:
  • Slab Panel: The main concrete slab typically 100mm to 125mm thick.
  • Perimeter Beams: Deeper beams formed at the slab edges, housing significant reinforcement.
  • Internal Beams (Strip Footings): Beams running under load-bearing walls or centrally, tying the slab together.
  • Reinforcement: Steel mesh (e.g., SL82, SL72) within the slab panel, and individual steel bars (rebar, e.g., N12, N16, N20) within the beams, tied with ligatures.
  • Vapour Barrier: A plastic membrane (e.g., 200 µm polythene film) placed directly below the concrete to prevent moisture ingress.
  • Edging Formwork: Timber or steel formwork to define the slab's perimeter.

2.3. Waffle Pod Slabs: The Modern Evolution

Waffle pod slabs, sometimes referred to as 'waffle rafts,' employ a grid of expanded polystyrene (EPS) pods (typically 1090mm square and varying in height from 175mm to 375mm) placed directly on a prepared base. Concrete is then poured over and between these pods, creating a series of ribs (beams) in both directions (like a waffle iron), with a thinner concrete topping slab. The pods remain in place, acting as void formers and insulation.

• Components:
  • EPS Pods: Lightweight, rigid polystyrene blocks forming voids, typically 1090mm x 1090mm with varying depths.
  • Ribs/Beams: Concrete beams formed between the pods, typically 110mm wide.
  • Slab Topping: A continuous concrete layer over the pods and ribs, typically 85mm to 100mm thick.
  • Reinforcement: Steel mesh (e.g., SL72, SL82) in the topping slab, and two perimeter L-bar trenches for edge beams. Specific rebar in ribs (e.g., N12, N16) depending on design.
  • Plastic Film: Essential moisture barrier, typically a 200 µm polythene film, placed under the pods to prevent moisture ingress and acts as a slip layer.
  • Edge Boards: Fibre cement or timber edge boards used as permanent formwork, or removable formwork in some cases.

Both systems are designed to comply with AS 2870, which specifies minimum slab thicknesses, beam dimensions, and reinforcement for various soil classifications and building sizes, ensuring the foundation can withstand anticipated ground movements without exceeding structural limits. For steel frame kit homes, the lighter dead load can sometimes permit minor optimisations in slab design compared to brick veneer; however, the critical factor remains the soil classification.

3. Australian Regulatory Framework: Guiding Principles for Your Foundation

Adherence to Australia's stringent building codes and standards is non-negotiable for owner-builders. This section outlines the primary regulatory requirements governing slab foundations, ensuring your steel frame home is built safely and compliantly.

3.1. National Construction Code (NCC) and Australian Standards

NCC Reference: NCC 2022, Volume Two, Part 3.2.2 pertains directly to 'Footings and Slabs'. It stipulates that buildings must be constructed with footings and slabs that will withstand the anticipated actions for the life of the building without affecting its serviceability or stability. Performance Solution P2.2.1 outlines these requirements.

Australian Standard: The cornerstone for residential slab design is AS 2870:2011 'Residential slabs and footings – Construction'. All foundation designs, whether raft or waffle pod, must conform to this standard. AS 2870 defines design parameters based on soil reactivity, building size, and anticipated service loads. Engineers typically design to the deemed-to-satisfy provisions of AS 2870, or provide a performance solution demonstrating compliance with the NCC via engineering principles.

Other critical standards and codes include:

• AS 3600:2018 'Concrete structures': While AS 2870 is primary for residential slabs, AS 3600 provides general principles for concrete design and construction, relevant for concrete mix specifications, curing, and placement.
• AS/NZS 4671:2019 'Steel reinforcing materials': Specifies requirements for reinforcing steel.
• AS 3700:2018 'Masonry structures': Relevant if your steel frame kit home incorporates masonry elements, such as brick veneer or internal masonry walls, as these will influence foundation loads.

3.2. State-Specific Variations and Regulatory Bodies

While the NCC and AS 2870 provide a national framework, states and territories have specific planning laws, licensing requirements, and minor regulatory nuances that owner-builders must address. Engaging with your local council and state building authority early is crucial.

• New South Wales (NSW):

  • Regulatory Body: NSW Fair Trading. All owner-builders must obtain an owner-builder permit for work valued over $10,000. Foundations require approval via a Construction Certificate (CC) or Complying Development Certificate (CDC).
  • Specifics: Adherence to the Environmental Planning and Assessment Act 1979 and its Regulations. Certifiers (either council or private) are crucial for inspections at various stages, including prior to concrete pour.

• Queensland (QLD):

  • Regulatory Body: Queensland Building and Construction Commission (QBCC). Owner-builders must apply for an owner-builder permit for projects valued over $11,000.
  • Specifics: Compliance with the Building Act 1975 and Building Regulation 2021. Building certifiers are independent professionals who approve plans, conduct inspections, and issue a Certificate of Occupancy. Termite management systems are particularly critical in QLD and must be integrated into the foundation design.

• Victoria (VIC):

  • Regulatory Body: Victorian Building Authority (VBA). Owner-builders typically need a certificate of consent for domestic building work exceeding $16,000.
  • Specifics: Building Act 1993 and Building Regulations 2018. Registered Building Surveyors oversee the building permit process, conduct mandatory inspections, and issue occupancy permits or certificates of final inspection. Particular attention to bushfire attack level (BAL) ratings and associated foundation protection is common.

• Western Australia (WA):

  • Regulatory Body: Department of Mines, Industry Regulation and Safety (DMIRS). An owner-builder approval is required for work exceeding $20,000.
  • Specifics: Building Act 2011 and Building Regulations 2012. Building permits are issued by local government building services. The seismic design category, as determined by AS 1170.4, can influence foundation design, though typically minor for residential structures.

• South Australia (SA):

  • Regulatory Body: Consumer and Business Services (CBS). Owner-builder accreditation is required for regulated building work valued over $12,000.
  • Specifics: Planning, Development and Infrastructure Act 2016. Council or private building certifiers provide approval and inspection services. Specific requirements for salinity often arise in coastal or specific regional areas, influencing concrete mix designs and reinforcement protection.

• Tasmania (TAS):

  • Regulatory Body: Department of Justice – Consumer, Building and Occupational Services (CBOS). Owner-builders must apply for a permit for work valued over $5,000.
  • Specifics: Building Act 2016 and Building Regulations 2016. Permit authorities (usually local councils) issue building permits and conduct inspections. Consideration of frost heave in certain elevated regions is occasionally pertinent, though less common for typical residential slabs.

Owner-Builder Implication: As an owner-builder, you retain primary responsibility for ensuring compliance. This means thorough comprehension of these requirements, engaging qualified professionals (geotechnical engineers, structural engineers, building certifiers), and meticulous record-keeping. Your building certifier will be your most critical ally in navigating regulatory compliance.

4. Step-by-Step Process: From Ground Up

This section outlines the detailed, step-by-step process for constructing either a waffle pod or a conventional raft slab, with specific considerations for steel frame kit homes.

4.1. Pre-Construction & Planning Phase

1. Geotechnical Investigation:

   • Action: Engage a qualified geotechnical engineer to conduct a site investigation (boreholes/test pits) and provide a comprehensive report.
   • Output: Soil classification (per AS 2870), slab design parameters, recommendations for site preparation, and potential challenges (e.g., reactive clay, fill, rock).

2. Structural Engineering Design:

   • Action: Provide the geotechnical report, architectural plans (including BlueScope TRUECORE® steel frame details), proposed services layout, and site survey to a structural engineer.
   • Output: Detailed slab design drawings, reinforcement schedules, concrete specifications, and certification that the design complies with NCC and AS 2870. The engineer will consider the specific loads from the steel frame, including concentrated loads from columns or heavy internal elements.

3. Council & Certifier Approval:

   • Action: Submit engineering plans, architectural plans, and relevant permits (owner-builder, construction certificate/building permit) to your building certifier and local council.
   • Output: Stamped approved plans and a building permit, outlining all mandatory inspection points.

4. Builder's Insurance:

   • Action: Obtain mandatory owner-builder construction insurance and other relevant policies.
   • Output: Proof of insurance compliance.

4.2. Site Preparation & Earthworks

1. Site Clearing and Stripping:

   • Action: Remove all vegetation, topsoil, and deleterious materials (e.g., roots, rubbish) down to competent natural ground, typically 100-200mm below proposed finished ground level.
   • WHS: Ensure all machinery operators are licensed (e.g., excavator ticket) and follow safe work procedures. Mark all underground services before digging.

2. Rough Earthworks & Leveling:

   • Action: Excavate or fill to achieve the approximate desired slab level. Ensure appropriate fall away from the building for drainage (minimum 50mm over 1m).
   • Consideration: For reactive sites, minimise disturbance to natural ground. If filling is required, it must be engineered fill, compacted in layers to specifications (e.g., 95% Standard Compaction per AS 3798).

3. Installation of Underground Services (Plumbing, Electrical):

   • Action: Install all critical plumbing (pipework, waste points) and electrical conduits (for power, data, communication) that will be embedded within or pass through the slab.
   • WHS: Ensure trenches are safe and shored if deep. All plumbing and electrical work must be undertaken by licensed tradespeople.

4. Compaction & Pad Preparation:

   • Action: Compact the sub-grade to engineer's specifications. This often involves a granular layer (e.g., compacted aggregate or crushed rock) or careful compaction of existing soils.
   • WHS: Use pedestrian rollers or plate compactors safely. Ensure hearing protection and dust masks are used.

4.3. Foundation Specifics: Raft Slab Construction

1. Formwork Installation:

   • Action: Erect the perimeter formwork (typically timber or steel) to the exact dimensions and levels specified by the engineer. Ensure forms are securely braced and plumb.
   • Tolerance: Level and dimension tolerances are critical; typically +/-5mm for level and +/-10mm for dimensions over 10m.

2. Excavate Beams/Strip Footings:

   • Action: Precisely excavate internal and perimeter trenches for the beams/strip footings according to the engineering plans. Ensure clean, square, and stable trenches.
   • Consideration: On reactive sites, ensure trenches are protected from drying/wetting to prevent soil movement before concrete pour.

3. Vapour Barrier & Slip Layer:

   • Action: Lay a continuous 200 µm (or thicker) heavy-duty polythene film over the entire slab area and into the beam trenches. Ensure overlaps are taped (min. 200mm) and penetrations sealed.
   • Purpose: Prevents rising damp, which could lead to mould, timber rot, or efflorescence, critical for the long-term health of your steel frame home.

4. Reinforcement Installation:

   • Action: Place reinforcing steel (mesh and rebar) as per the engineering drawings. Ensure correct bar sizes, locations, laps, and cover.
   • Cover: Maintain adequate concrete cover (typically 25-40mm) using plastic or concrete bar chairs to prevent corrosion of the steel. This is essential for the longevity of your slab, especially with BlueScope steel frames which are themselves highly corrosion resistant.
   • Termite Barriers: Integrate any physical termite barriers (e.g., stainless steel mesh, impregnated sheets) at penetrations and perimeter as required by AS 3660.1.

5. Pre-Pour Inspection:

   • Action: The building certifier conducts a mandatory 'prior to pour' inspection. Plumbers and electricians may also need to sign off on their work at this stage.
   • Outcome: Sign-off from certifier, allowing concrete pour to proceed.

6. Concrete Pour & Finishing:

   • Action: Pour concrete (specified strength, typically 20-32 MPa) evenly. Vibrate thoroughly to eliminate air voids. Screed to level, steel float, and finish (e.g., broom finish for external, smooth finish for internal).
   • WHS: Wear appropriate PPE (boots, gloves, eye protection), ensure site access is clear, and manage concrete truck movements. Be aware of the risks of wet concrete (alkaline burns).
   • Curing: Immediately commence curing (e.g., wet hessian, curing compound, plastic sheeting) for at least 7 days to prevent rapid drying and cracking.

4.4. Foundation Specifics: Waffle Pod Slab Construction

1. Formwork (Edge Boards) Installation:

   • Action: Install permanent fibre cement edge boards or removable formwork along the perimeter to maintain the slab's shape. These boards are usually propped and braced.
   • Tolerance: As with raft slabs, level and dimension tolerances are paramount.

2. Ground Preparation & Plastic Sheet:

   • Action: Prepare a precisely level and compacted base. Lay a continuous 200 µm heavy-duty polythene film over the entire area, extending beyond the edge boards. Lap and tape joins diligently.
   • Crucial Difference: Unlike raft slabs where the plastic is in the beam trenches, for waffle pods, it is under the pods, acting as a critical slip layer allowing the slab to "float" over reactive soils more effectively.

3. Pod Placement:

   • Action: Carefully place the EPS pods in the grid pattern specified by the engineer, ensuring correct spacing for ribs. Secure pods to prevent movement during the pour.
   • Consideration: Pods are lightweight and can lift during the pour if not adequately held down (e.g., with steel strapping or temporary weights).

4. Reinforcement Installation:

   • Action: Place reinforcing mesh (e.g., SL72, SL82) over the pods, supported by chairs, and individual rebar within the rib trenches (between pods) as per engineering plans. Two perimeter L-bars are typical for edge beams.
   • Termite Barriers: Integrate physical termite barriers around penetrations and perimeter, ensuring they are not compromised by edge boards or concrete.

5. Pre-Pour Inspection:

   • Action: Mandatory building certifier inspection. Plumbers and electricians also verify their services.
   • Outcome: Sign-off from certifier.

6. Concrete Pour & Finishing:

   • Action: Pour concrete (typically 20-32 MPa) evenly. Exercise care to prevent pods from dislodging or floating. Vibrate gently within ribs. Screed and finish as required.
   • WHS: The lightweight nature of pods can create tripping hazards. Be especially vigilant during concrete placement to ensure workers do not fall into voids.
   • Curing: Commence curing immediately for at least 7 days.

4.5. Post-Concreting & Curing

1. Formwork Removal (Raft Slabs):

   • Action: Once concrete has achieved sufficient strength (typically 3-7 days), carefully remove perimeter formwork.
   • Consideration: Waffle pod edge boards are often permanent, so this step is less common for them.

2. Continued Curing:

   • Action: Maintain consistent curing regimen to prevent premature drying, which can lead to shrinkage cracks and reduced concrete strength.
   • Criticality: Proper curing is essential for the long-term durability and strength of your slab, regardless of type.

3. Protection of Slab:

   • Action: Protect the finished slab from construction traffic, weather, and damage until the steel frame is erected and the roof is on.
   • Consideration: Avoid heavy point loads directly on a new slab. Use temporary protection (e.g., plywood) for material storage or scaffolding.

5. Practical Considerations for Steel Frame Kit Homes

Steel frame kit homes, whether constructed with BlueScope TRUECORE® steel or similar high-quality products, offer specific benefits and considerations for foundation design and execution.

5.1. Point Loads and Load Distribution

• Steel Frame Advantage: Steel frames generally exhibit higher strength-to-weight ratios than timber, resulting in lighter overall building dead loads. However, steel columns (posts) can create concentrated point loads on the slab.
• Engineering Impact: Your structural engineer must accurately account for these point loads. This may require localised thickening or additional reinforcement (e.g., trimming bars, extra rebar cages) under column positions, regardless of whether you choose a raft or waffle slab.
• TRUECORE® Specifics: The precise attachment points for the TRUECORE® steel frame (hold-down bolts, chemical anchors) must be integrated into the slab design. The engineer will specify the location and type of these fixings, often requiring pre-drilled holes in footings or cast-in bolt sets.

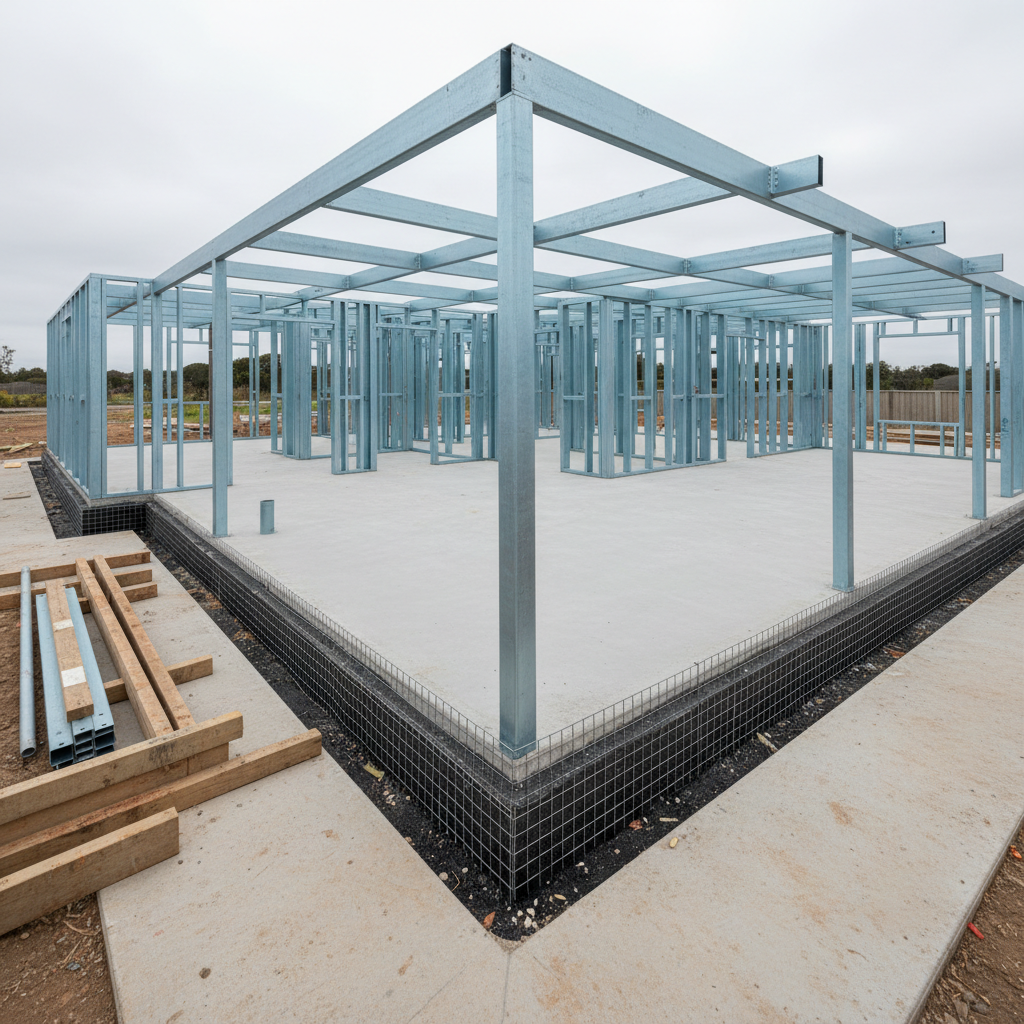

5.2. Termite Management

Steel frames themselves are impervious to termites. However, termites can still enter the building via concealed access points through the slab or around services penetrations. Effective termite management is therefore crucial, and it must integrate with your chosen slab system.

Australian Standard: AS 3660.1:2014 'Termite management – New building work' specifies requirements for termite protection.

• Physical Barriers: Common methods include stainless steel mesh (e.g., Termimesh), sheet materials (e.g., HomeGuard), or particulate systems (e.g., Granitgard) installed around penetrations (pipes, conduits) and/or along the slab perimeter. For waffle pods, the edge boards and perimeter require careful sealing.
• Chemical Barriers: Chemical treatments (e.g., Bifenthrin) can be applied under the slab or as perimeter trenches. These require reapplication every few years.
• Steel Frame Integration: Ensure that holding-down bolts, especially where they penetrate physical termite barriers, are properly sealed to maintain the barrier's integrity.

5.3. Thermal Performance & Insulation

• Waffle Pod Advantage: The EPS pods in a waffle slab offer inherent thermal insulation, reducing heat transfer between the ground and the interior. This contributes to a more energy-efficient building envelope, complementing the energy efficiency of a well-designed steel frame.
• Raft Slab Option: While conventional raft slabs don't offer this built-in insulation, proprietary insulation systems (e.g., extruded polystyrene boards) can be placed under the slab or vertically along the perimeter beams to achieve similar thermal benefits.
• NCC & Energy Efficiency: The NCC Volume Two, Part 3.12 'Energy Efficiency' requires buildings to achieve a certain energy rating. Insulated slabs contribute positively to this rating. Always consult an energy assessor for your steel frame kit home design.

5.4. Services Integration & Accessibility

• Pipes & Conduits: Both slab types require careful planning for all services (water, sewer, stormwater, electrical, data) to penetrate the slab at designated points. This is particularly critical for steel frame homes where wall cavities might be thinner or pre-punched for services, requiring precise slab penetrations.
• Waffle Pod Specifics: Services are typically run in the trenches between pods. Care must be taken not to crush pods or compromise their structure during pipe laying and concrete pour.
• Raft Slab Specifics: Services are laid directly on the prepared ground before reinforcement and concrete. Ensuring adequate protection and bedding for pipes is vital.

5.5. Precision and Tolerances for Steel Frames

• Steel vs. Timber: Steel frames require a higher degree of precision in foundation construction than traditional timber. While timber can tolerate minor slab irregularities with shims and packing, steel is less forgiving.
• Slab Flatness: A flat and level slab is paramount for square and plumb steel frame erection. Deviations can lead to difficulties in connection, alignment, and potentially compromise the structural integrity of the frame. The NCC defines specific tolerances for slab flatness and levelness (e.g., AS/NZS 1100.301 'Technical drawing – Geometrical tolerancing').
• Owner-Builder Action: Emphasise to your concreter the need for superior finish and precision. Consider using a laser level extensively during planning and execution. Any significant deviations will require costly rectification or can complicate the steel frame assembly.

6. Cost and Timeline Expectations

Cost and time are paramount for owner-builders. This section provides realistic estimates for both slab types, noting they are highly variable based on location, site conditions, and material costs.

6.1. Cost Comparison (AUD, as of mid-2024, indicative only)

Costs are influenced by:

• Site Reactivity: Highly reactive 'H' or 'E' sites will incur significantly higher costs due to deeper beams and heavier reinforcement.
• Site Access: Difficult access increases earthworks and concrete pump costs.
• Slab Size & Complexity: Larger or irregularly shaped slabs cost more.
• Excavation Requirements: Rock excavation dramatically escalates costs.
• Current Material Prices: Steel, concrete, and EPS prices fluctuate.

• Overall: Waffle pod slabs often present a slight cost advantage (5-15%) over conventional raft slabs for similar performance, primarily due to reduced excavation, quicker formwork (permanent edge boards usually), and sometimes less concrete volume if designed efficiently. However, this is not a universal truth and depends heavily on the specific engineering design and local market rates.

6.2. Timeline Expectations

Both slab types typically follow similar timelines for the foundation stages, assuming good weather and no major site complications.

• Geotechnical & Engineering Design: 2-4 weeks

• Council/Certifier Approval: 4-8 weeks (can be longer depending on council load)

• Site Preparation (Clearing, Earthworks, Services): 1-3 weeks

• Formwork & Reinforcement Installation:

  • Conventional Raft: 3-7 days
  • Waffle Pod: 2-5 days (often quicker due to pods acting as formwork)

• Slab Pour & Initial Curing: 1-2 days (with 7+ days critical curing time before significant loading)

• Total Indicative Foundation Period: 8-16 weeks from initial design to cured slab. Owner-builders need to factor in lead times for material delivery and contractor availability. Concrete is often poured on a specific day, so coordinate trades well in advance.

7. Common Mistakes to Avoid

Owner-builders face unique challenges. Avoiding these common pitfalls can save significant time, money, and stress, especially when constructing the foundation for a steel frame kit home.

1. Skipping Geotechnical Investigation: This is the most catastrophic error. Building on unclassified or incorrectly classified soil can lead to structural failure, extensive cracking, and costly rectification. It voids insurance and warranty.

   Warning: Never rely on anecdotal soil reports or assume your site is 'good'. A proper geotechnical report informs the structural engineer's design, which is a legal requirement under the NCC.

2. Deviating from Engineering Plans: The structural engineer's drawings are legally binding. Altering slab dimensions, reinforcement type, bar spacing, or concrete cover without written approval from the engineer is a serious breach. This can comprise structural integrity and will be flagged by your certifier.

   • Owner-Builder Action: If on-site conditions necessitate a change, stop work and contact your engineer immediately for a revised design. Do not proceed until you have updated, certified plans.

3. Poor Site Drainage: Inadequate fall away from the slab edges (min 50mm over 1m) or failure to install effective sub-surface drainage can lead to water pooling, which, especially on reactive clay sites, causes significant differential soil movement. This can warp or crack the slab and compromise your steel frame.

   • Owner-Builder Action: Plan drainage before commencing earthworks. Ensure finished ground levels promote positive stormwater runoff away from the building.

4. Inadequate Concrete Curing: Rushing the curing process or failing to cure correctly leads to weaker concrete, increased cracking (shrinkage cracking), and reduced durability. This is a common shortcut that long-term affects slab performance.

   • Owner-Builder Action: Implement a rigorous curing plan for at least 7 days (or as specified by engineer/concrete supplier). This can involve ponding water, regular misting, or application of a curing compound. Protect the slab from direct sun and wind.

5. Compromising Termite Management Systems: Rushing or improperly installing physical termite barriers can leave pathways for termites. Damage to barriers during subsequent construction stages is also common. For steel fame homes, while the frame itself is safe, internal fit-out can still be compromised.

   • Owner-Builder Action: Engage a licensed pest control provider for barrier installation. Ensure all other trades are aware and take care not to damage installed barriers. Verify barrier integrity during certifier inspections.

6. Incorrect Slab Elevations and Setbacks: Misinterpreting survey marks or architectural plans can result in the slab being poured too high, too low, or off its intended position. This can lead to compliance issues (e.g., street level access, window heights, fire compliance) and significant re-work.

   • Owner-Builder Action: Thoroughly check all set-out points, boundary clearances, and finished floor levels against approved plans using a laser level before concrete pour. Double-check with your certifier.

7. Neglecting WHS: Construction sites are inherently dangerous. Owner-builders are legally responsible for WHS. Neglecting basic safety protocols (PPE, guarding, safe lifting, clear access) can lead to serious injury or even fatalities.

   WHS Reference: The Work Health and Safety Act 2011 (and corresponding state legislation, e.g., Work Health and Safety Act 2017 in NSW) places duties on persons conducting a business or undertaking (PCBU), which includes owner-builders. Safe Work Australia provides extensive guidance. Always conduct a site-specific risk assessment.

8. When to Seek Professional Help

While this guide aims to empower owner-builders, certain aspects of foundation construction absolutely mandate professional involvement. Knowing these trigger points is crucial for compliance, safety, and project success.

1. Geotechnical Engineering: Always engage a qualified geotechnical engineer for site classification and recommendations per AS 2870, especially for reactive sites (H, E, P) or sites with unusual conditions (significant fill, rock, soft clays, high water table).
2. Structural Engineering: A structural engineer is critical for designing the slab and footing system (raft or waffle pod) based on the geotechnical report, architectural plans, and loads from your BlueScope TRUECORE® steel frame. They provide the certified structural drawings required for your building permit.
3. Building Certifier: The certifier (private or council) is your legal gateway to compliance. They approve plans, conduct mandatory inspections (e.g., pre-pour), and issue permits. They are your primary point of contact for regulatory queries.
4. Licensed Tradespeople:
   • Plumbers: All underground plumbing must be installed and certified by a licensed plumber.
   • Electricians: All electrical conduits and pre-slab wiring must be installed and certified by a licensed electrician.
   • Pest Control Technicians: Installation of physical or chemical termite barriers must be by a licensed pest control professional, especially for warranty purposes.
5. Surveyor: A licensed surveyor may be required for precise boundary set-out, finished floor levels, or to confirm compliance with easements and setbacks, particularly on complex or tight sites.
6. Concrete Contractor (Concreter): While owner-builders can assist, the actual pouring and finishing of concrete is a skilled trade. Engaging an experienced and reputable concreter is highly recommended to achieve the required flatness, levelness, and finish for your steel frame kit home.
7. Specialist Contractors (e.g., Rock Excavation): If your site has significant rock or complex excavation requirements, engaging a specialist earthmoving contractor with appropriate machinery and experience is essential.

Owner-Builder Duty: As an owner-builder, you are considered the 'head contractor' and bear significant legal responsibility for the safe and compliant execution of all work undertaken on your site, even by sub-contractors. Ensure all professionals and trades you engage hold current licenses and insurance.

9. Checklists and Resources

9.1. Foundation Planning Checklist

• Obtain Geotechnical Report (AS 2870 site classification)
• Engage Structural Engineer for slab design (per NCC, AS 2870, AS 3600)
• Obtain Owner-Builder Permit & Building Permit/Construction Certificate
• Verify Builder's Insurance coverage
• Site Survey complete (boundaries, contours, existing services)
• Services layout planned (plumbing, electrical, comms. through slab)
• Discuss potential challenges with all design professionals (rock, fill, reactive soil)
• Budget allocated for contingencies (minimum 10-15% of foundation cost)
• Secure licensed trades (plumber, electrician, concreter, pest control)
• Order long-lead items (e.g., specific rebar, pre-cut mesh, pods if needed)

9.2. Pre-Pour Inspection Checklist (for Owner-Builder verification)

• Site clearance and compaction complete as per engineer's specifications
• All underground services installed, pressure-tested, and certified by licensed trades
• Termite management system installed to AS 3660.1 and certified
• Formwork (or edge boards) installed to correct dimensions, levels, and squareness
• Vapour barrier laid continuously, laps taped, and penetrations sealed
• Reinforcement (mesh, rebar) correctly sized, placed, lapped, and tied per plans
• Correct concrete cover achieved with appropriate chairs
• Hold-down bolts/anchors for steel frame accurately positioned and secured
• Site clean, accessible, and safe for concrete pour (e.g., no tripping hazards)
• Water available for curing
• Building Certifier has completed the mandatory pre-pour inspection and approved the pour.

9.3. Key Resources & Contacts

• National Construction Code (NCC): https://ncc.abcb.gov.au/ (Access requires registration)
• Australian Standards (SAI Global): Purchase AS 2870, AS 3600, AS 3660.1, AS/NZS 4671.
• BlueScope Steel & TRUECORE®: https://steel.com.au/ and https://truecore.com.au/ (Technical information, product specifications)
• State Building Regulators:
  • NSW: Fair Trading NSW
  • QLD: QBCC
  • VIC: VBA
  • WA: DMIRS
  • SA: Consumer and Business Services
  • TAS: CBOS
• Safe Work Australia: https://www.safeworkaustralia.gov.au/ (WHS guidance and legislation)
• Cement Concrete & Aggregates Australia (CCAA): https://www.concrete.net.au/ (Technical concrete guidance)

10. Key Takeaways: The Foundation of Your Success

The choice between a waffle pod and a conventional raft slab for your Australian steel frame kit home hinges on a complex interplay of site conditions, engineering requirements, personal preference, and budget. Both systems, when correctly designed and constructed to AS 2870 and NCC standards, will provide a robust foundation for your TRUECORE® steel frame. However, the waffle pod often offers advantages in terms of reduced excavation (less spoil removal), potentially quicker installation for the same load capacity, and inherent thermal insulation.

Crucially, as an owner-builder, your role is one of diligent project management, meticulous planning, and unwavering commitment to regulatory compliance. Never cut corners on geotechnical investigations, structural engineering, or certified inspections. Embrace the detailed guidance from your professionals, understand the specific requirements for your state, and prioritise safety above all else. Your foundation is not just concrete and steel; it is the ultimate expression of your care and attention, ensuring the longevity and structural integrity of your dream steel frame kit home for generations to come.

By thoroughly understanding the principles laid out in this advanced guide, you are not merely building a house; you are constructing a legacy, firmly rooted in sound engineering and code compliance.
